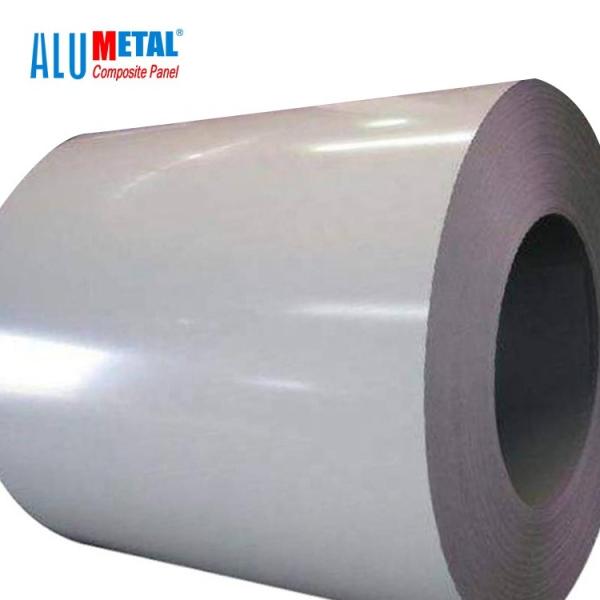

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

  • 1
  • 2

Place of Origin : shanghai

Brand Name : Alumetal

Model Number : AM018

Packaging Details : Packing: Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests

MOQ : 300 Square Meters

Price : To be negotiated

Product Name : Red Blue White Color AA1100 3003 3004 3105 5006 5052 8011 1000mm Aluminum Alloy Coil

Application : Roofing interior exterior wall decoration,facade, Roofing, interior and exterior wall decoration, facade, ACP, etc

Surface Finish : Matt,glossy,brushed,mirror,wooden, stone etc

Width : <2600 mm, <2600 mm

Grade : 3000 Series

Temper : O - H112

Tolerance : ±1%

Processing Service : Bending, Decoiling, Welding, Punching, Cutting

Color : Red,white,black,blue,green,yellow etomer's requirementstc or custom

Aluminum Alloy : Aluminium (AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc)

Contact Now

Red Blue White Color AA1100 3003 3004 3105 5006 5052 8011 1000mm Aluminum Alloy Coil

Aluminum Coil has many features such as high definition, rustless, super texture and feel, excellent impact strength, waterproof and easily clean, light weight and easy to process, extremely durable scratch resistant surface, eco-friendly, vibrant colors, excellent fire resistance, super weather resistance, good gloss and smoothness, uniform and plently colors of coating.

Color painted aluminum coil roll is available in hundreds of colors, aluminum casing trim is economical and provides a durable, low-maintenance finish.or we can finished colors as your requst.
In our company have two ways of painted aluminum coils PVDF and PE.
Compared with PVDF, PVDF is mostly used outdoors and has anti-yellow and weather resistance properties. PE is mostly used indoors.for service life, PVDF is about 13 years. PE about 8 years.
Coloring: The aluminum coil has a single-sided coloring and double-sided coloring.
Single-sided coloring: PE single coating 15-18mic, PE double coating 25-28mic, or PVDF double coating 25-28mic
Double-sided coloring: Painted on the front side, painted on one side. Back coloring: 5-10mic. Usually varnish or off-white. Special can do the same color.

Alloy Thickness Width Temper
A1050, A1060, A1070, A1100 0.2MM~200MM 10MM~2500MM O, H12, H22, H14, H16, H18, H24, H26, etc
A3003, A3105, A3004 0.2MM~200MM 10MM~2500MM O, H14, H18, H24, etc
A5052, A5005, A5083, A5754 0.2MM~200MM 10MM~2500MM O, H14, H18, H24, etc
A6061, A6082, A6063 0.2MM~200MM 10MM~2500MM T4, T6, T651, etc
A8011 0.2MM~200MM 10MM~2500MM O, H12, H22, H14, H16, H18, H24, H26, etc

Production Process Cold Rolled, Hot Rolled
Internal Diameter 150mm, 305mm, 405mm, 505mm or per request
Coil Weight 2-4 tons
Standard ASTM-B209, EN573-1, GB/T3880.1-2006
Color Alumetal color and customized color as sample, Ral or Pantone
Color Standard E<2 or it is not obvious by eyeballing
Coating PE, PVDF, Epoxy
Coating Thickness PVDF>=25 micron POLYESTER>=18 micron
Coating Adhesive Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993)
MOQ 5~8 Tons (According to specification)
Delivery Time Future goods: 20~30 work days, ready stock: 7-10 days.
Quality of Material Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set.
Pencil Hardness >2HB
Bend Strength >100 times
Boiling Point No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
Corrosive Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change
Package Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP

Click Below to Download Color Chart
Alumetal Color Chart.pdf

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF CoatingAA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating

Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.

Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.

Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.

Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
